Temperature / Gauges

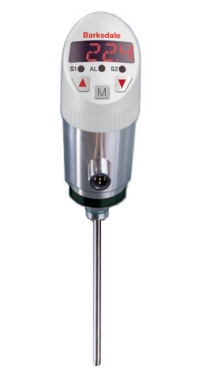

NEW: BTS3000

Programable electronic pressure gauge with optional switch points and analogue output.

‐ ‐30 to 150 °C
‐ Large LED Digital display and keypad
- Any angle mounting, rotatable housing, fitting and inversion of display
‐ Self monitoring with error diagnosis
‐ Simple push button calibration
‐ NEMA 4X, IP65/IP67
- UV Stabilised for full sun service without sun-visors or shielding.


BTS3000 Data Sheet


Model 1100 & 1110
‐Remote, Rear flange mount


‐ Top or bottom connection
‐ 0.6 to 50 m capillary
‐ Ambient and capillary compensation
‐ Capillaries are stainless steel armored




Model 1160 ‐
Remote, front flange

‐ Rear connection
‐ 0.6 to 50 m capillary
‐ Ambient and capillary compensation
‐ Capillaries are stainless steel armored



(back to top)


Model 1170
‐ Remote, Bracket mount

‐ Rear connection
‐ 0.6 to 50 m capillary
‐ Ambient and capillary compensation
‐ Capillaries are stainless steel armored



(back to top)


Model 1200, 1220 & 1250
‐ Local mount


‐ Case compensation
‐ Accuracy is 1 ‐2% full scale
‐ Helical coil sensing element has no mechanical movement to fail
‐ Union connection



(back to top)


Model 140, 1420 & 1450
‐Local mount for outdoor use


‐ Case compensation
‐ Accuracy is 1 ‐2% full scale
‐ Helical coil sensing element has no mechanical movement to fail
‐ Union connection



(back to top)


Model 1620
‐ Any angle thermobulb


‐ Any angle between 0 and 90 degrees.
‐ Case compensation
‐ Union connection

Temperature Gauges Data Sheet

(back to top)


Model 136X
‐ Single or dual temperature switch


‐ Remote mount
‐ Front flange
‐ Rear input



(back to top)


Model 138X
‐ Single or dual temperature switch


‐ Remote mount
‐ Front flange
‐ Top input



(back to top)

Model 148X ‐ Single or dual temperature switch

‐ Local mount
‐ Union connector



(back to top)
