Vibration Switches

A Vibration Switches is a protection device generally used to alert when equipment is exceeding a predetermined level of vibration. In its simple form a Vibration Switch may comprise a spring loaded trigger mechanism that latches when exposed to excessive vibration. More sophisticated Vibration Switches include circuits, solid state sensors and microprocessors for greater accuracy, increased measurement range and more complex operations

Typical applications for vibration switches include rotating equipment like fans, gear boxes, motors and pumps often found in cooling towers, heat exchangers, crushing equipment and, vibrating screens/feeders.

Metrix ST5485E-SW Vibration Switch
Metrix programable electronic vibration switch with 4-20 mA and Dynamic data outputs

          • Loop powered with 2 independant alarms
          • Compact size. Any orientation.
          • 4-20 mA and raw dynamic data output options
          • Configurable setpoints and delays for alarm and start-up
          • High and low pass filters
          • IP66 or IP68 ingress protection options
          • 316S housing

        ST5484E-SW Data Sheet

Metrix 5550 Vibration Switch

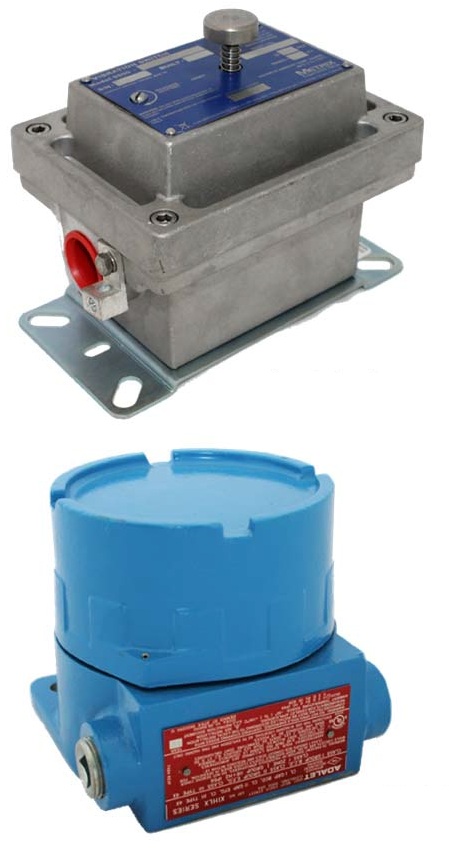

Mechanical vibration switch with IECEx approval

Metrix model 5550 and 5550G mechanical vibration switches provide basic, economical vibration protection by means of a simple and highly reliable "over center" snap action mass and spring mechanism. In the presence of sufficient vibration along the vibration switch’s sensitive axis, the vibration switch snaps from a stable "untripped" state to a stable "tripped" state, allowing automatic machinery shutdown or alarming when excessive vibration occurs. Once tripped, the vibration switch must be returned to its untripped state via its local reset plunger (5550 only), or via voltage applied to its remote reset coil (standard on 5550G, optional on 5550). A single set of silver‐plated SPDT relay contacts are provided as standard for connecting the vibration switch to a machine control or annunciation circuit. An option for DPDT contacts is also available, and for extremely corrosive environments, gold‐plated relay contacts may be ordered.

Features:

Dual Vibration SwitchSW5580
Single or Dual Channel Monitoring Card with Alarm outputs

The Metrix SW5580 is a SMART, field configurable, standalone signal monitoring card with dry contact or solid state alarms that accepts raw signals from accelerometers, velocity sensors and proximity (eddy current) drivers. It's capable of processing an array of variables including vibration, displacement, speed, rod drop, rod position and impact making it a flexible and high value solution for many machinery condition monitoring applications.

          • Local display of input and output
          • Dry contact or Solid State Alarm outputs
          • BNC connection for quick and local access to dynamic data
          • Accepts raw signals from accelerometer, velocity sensors and proximity sensor inputs
          • User selectable filters, range, output scale and more
          • Impact monitoring feature for looseness, cavitation, knocking and other high frequency applications
          • IECEx approval for Hazardous Area Applications.

          Data sheet IECEx Certificate


Metrix 440 Vibration Switch
Metrix electronic vibration switch with 4-20 mA

          • Field settable for N.O. or N.C.
          • Remote reset capability
          • Provision for self‐test and calibration
          • BNC output for dynamic data connection

          440 Data Sheet

Metrix 450 Vibration Switch in Explosion Proof Housing
Metrix electronic vibration switch in Explosion proof housing

          • Field settable for N.O. or N.C.
          • Remote reset capability
          • Provision for self‐test and calibration
          • BNC output for dynamic data connection

          450 Data Sheet

(back to top)

Metrix SW6000 IECEx Vibration Switch
Metrix electronic Vibration Switch with IECEx approval

          • Weatherproof/optional ex‐proof rated
          • Single or optional dual set point
          • Adjustable trip delay
          • Set point test feature
          • Buffered, dynamic vibration signal output for analysis
          • IECEx Ex D approval

          SW6000 Data Sheet

          (back to top)

Metrix SM6000 Remote IECEx Vibration Switch
Metrix electronic Vibration Switch with IECEx approval and remote sensor

          • Weatherproof/optional ex‐proof rated
          • Single or optional dual set point
          • Adjustable trip delay
          • Set point test feature
          • Buffered, dynamic vibration signal output for analysis
          • IECEx Ex D approval

            SW6000 Data Sheet

          (back to top)

Metrix 5477 Two-Wire Vibration Switch
Metrix Two wire vibration switch, Explosion proof housing

          • Accelerometer based – velocity response
          • Single setpoint
          • Separate startup and monitor trip delays
          • External setpoint adjustment
          • Optional built‐in vibration LCD indicator

            5477 Data Sheet

            (back to top)

Metrix PRO440 Programmable Vibration Switch
Metrix Microprocessor based vibration switch with programmable features and LED display
