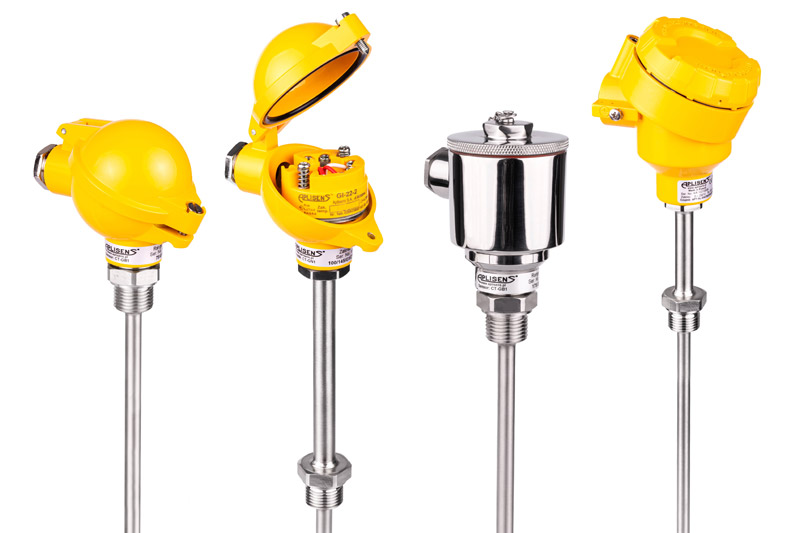

Temperature Sensors

Temperature Sensors (RTDs and Thermocouples) are passive temperature measuring elements made to suit application from -200 to +1700°C. A Resistance Temperature Detector, RTD, provides a proportional change in resistance to temperature where a thermocouple generate a change in voltage for a given temperature by the reaction of two dissimilar metals in contact. These outputs are governed by standards like PT100 & PT1000 for RTDs and K & J for Thermocouples.

For resistance sensors (RTD) platinum resistors change their electrical resistance as a function of temperature. RTD, the most commonly used sensors in the industry, are suitable for applications between -200…+600°C. The accuracy classes A and B are available with a tolerance acc. to IEC 60751.

Thermocouples are made of two different conductors joined at the end. The temperature difference between junction, placed in measuring point (hot junction), and wire ends (cold junction), generate voltage proportional to the difference of temperature between these junctions. Thermocouples are suitable for the measurement of high temperatures, up to 1700°C. The accuracy classes 1 and 2 are available with tolerance acc. to IEC 60584.

See also: Temperature Transmitters for compatible integral or remote transmitters and signal conditioners.

Temperature / Sensors

IP 66 temperature sensorCT AL ‐ General Purpose Temperature Sensor with Screw Lid
Complete with replaceable RTD or Thermocouple insert

          • -200 to +550°C
          • 2, 3 and 4 wire RTD (Pt50, Pt100, Pt1000, etc or thermocouple)
          • Compatible with head mount transmitters
          • Standard material of construction: 304 or 316L SS
          • Optional marine certificate
          • Simple apparatus for Ex ia applications

        Data Sheet

Temperature SensorCT I4 & CT I5 ‐ Temperature Sensor and Thermowell Assembly
Complete RTD and thermowell assembly

          • -70 to +150°C
          • 8 mm diameter SS thermowell
          • 2, 3 and 4 wire RTD inserts (Pt100, Pt1000, etc)
          • Standard wetted parts: 304 or 316L SS
          • Simple apparatus for Ex ia applications

        Data Sheet

Industrial Temperature SensorCT GB1 ‐ General Purpose Temperature Sensor
Complete with replaceable RTD or Thermocouple insert

          • -196 to +150°C
          • 2, 3 and 4 wire RTD or thermocouple inserts (Pt50, Pt100, Pt1000, etc or thermocouple)
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Standard wetted parts: 304 or 316L SS
          • Optional marine certificate
          • Simple apparatus for Ex ia applications

        Data Sheet

Compact temperature SensorCT 25 ‐ General Purpose RTD Temperature Sensor
Compact RTD for applications up to 200°C

          • -40 to +200°C
          • 2, 3 and 4 wire RTD type sensor (Pt50, Pt100, Pt1000, etc)
          • DIN EN 175301-803 (DIN 43650) and M12 electrical connectors
          • Standard wetted parts: 316L SS
          • Simple apparatus for Ex ia applications

        Data Sheet

Industrial Temperature SensorCT GN1 ‐ General Purpose Temperature Sensor with Cooling Extension
Complete with replaceable RTD or Thermocouple insert

          • -196 to +550°C
          • 2, 3 and 4 wire RTD or thermocouple inserts (Pt50, Pt100, Pt1000... or J, K...)
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Standard wetted parts: 304 or 316L SS
          • Optional marine certificate
          • Simple apparatus for Ex ia applications

        Data Sheet

Flanged temperature sensorCT T1 ‐ Flanged Temperature Sensor
Complete with replaceable RTD or Thermocouple insert and flange to your specifications

          • -196 to +550°C
          • 2, 3 and 4 wire RTD or thermocouple inserts (Pt50, Pt100, Pt1000... or J, K...)
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Standard wetted parts: 304 or 316L SS
          • Optional marine certificate
          • Simple apparatus for Ex ia applications

        Data Sheet

Weld in place temperature sensorCT SW1 & SW2 ‐ Temperature Sensor with Weld Compatible Shield
Complete with replaceable RTD or Thermocouple insert

          • -70 to +550°C
          • 2, 3 and 4 wire RTD or thermocouple inserts (Pt50, Pt100, Pt1000... or J, K...)
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Standard wetted parts: 304 or 316L SS
          • Optional marine certificate
          • Simple apparatus for Ex ia applications

        Data Sheet

Sanitary temperature sensorCT CL‐ Sanitary Temperature Sensor
Complete with replaceable RTD or Thermocouple insert

          • -70 to +150°C
          • 2, 3 and 4 wire RTD and thermocouple inserts (Pt50, Pt100, Pt1000... or J, K...)
          • Single or dual sensor
          • Sanitary connection options: Tri-Clover, DIN 11851, Varivent (Tuchenhagen) and more.
          • Compatible with head mount transmitters
          • Standard wetted parts: 316L SS, optional electropolishing
          • Single or dual sensor
          • Simple apparatus for Ex ia applications


CT I6, I8 & P1 ‐ Temperature Sensor for use with movable process connections
Complete with replaceable RTD or Thermocouple insert and can be supplied with movable process fitting

          • -196 to +550°C
          • 2, 3 and 4 wire RTD or thermocouple inserts (Pt50, Pt100, Pt1000... or J, K...)
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Standard wetted parts: 304, 316L SS or 15HM
          • Optional marine certificate
          • Simple apparatus for Ex ia applications

        Data Sheet

CT U ‐ High Temperature Sensor with Metal Shielding
Complete with replaceable Thermocouple insert and head resistant shield

          • -40 to +1100°C
          • J, K, S & B type thermocouple
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Standard wetted parts: 314 SS
          • Simple apparatus for Ex ia applications

        Data Sheet

CT UC ‐ High Temperature Sensor with Metal and Ceramic Shielding
Complete with replaceable Thermocouple insert and head resistant shield

          • -40 to +1100°C
          • B, K, J and S type thermocouples
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Standard wetted parts: 314 SS
          • Simple apparatus for Ex ia applications

        Data Sheet

CT C ‐ High Temperature Sensor with Ceramic Shielding
Complete with replaceable Thermocouple insert and head resistant ceramic shield

          • -196 to +1700°C
          • B, K, J and S type thermocouples
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Standard wetted parts: Ceramic
          • Simple apparatus for Ex ia applications

        Data Sheet

CT F ‐ Temperature Sensor with 2 Different Detection Points
Complete with replaceable Thermocouple insert and 2 user defined temperature points

          • -40 to +1000°C
          • B, K, J and S type thermocouples
          • Single and dual elements
          • Compatible with head mount transmitters
          • Standard material of wetted parts: 314 and Inconel
          • Simple apparatus for Ex ia applications

        Data Sheet

CT X ‐ Flexible Metal Temperature Sensor
Complete with RTD or Thermocouple

          • -196 to +1000°C
          • 2, 3 and 4 wire RTD or thermocouple (Pt50, Pt100, Pt1000... or J, K...)
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Standard wetted parts: Inconel (Thermocouple) or 316SS (Pt)
          • Simple apparatus for Ex ia applications

        Data Sheet

CT Z1 ‐ Ambient Temperature Sensor
Complete with replaceable RTD insert

          • -30 to +70°C
          • 2, 3 and 4 wire RTD options (Pt50, Pt100, Pt1000...)
          • Sanitary connection options: Tri-Clover, DIN 11851, Varivent and more
          • Sanitary approval
          • Compatible with head mount transmitters
          • Standard wetted parts: 316 SS sensor, ABS case
          • Single or dual sensor
          • Simple apparatus for Ex ia applications

CT GE1, E1 & E2 ‐ Temperature Sensor with Fixed Cable
Complete with RTD or Thermocouple

          • -196 to +150°C
          • RTD or thermocouple (Pt50, Pt100, Pt1000... or J, K...)
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Standard wetted parts: 304 or 316L SS
          • Simple apparatus for Ex ia applications

        Data Sheet

CT R5 & R6 ‐ Strap/Clamp on Temperature sensor
Complete RTD and clamp assembly for fixing to external surfaces like pipes

          • -30 to +180°C
          • RTD sensor (Pt50, Pt100, Pt1000...)
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Standard wetted parts: 304 or 316L SS
          • Simple apparatus for Ex ia applications

          Data Sheet

W2, 4 & 5 ‐ RTD and Thermocouple Inserts
Inserts for RTD and Thermocouple assemblies

          • -196 to +1800°C
          • 2, 3 and 4 wire RTD and B, K, J & S thermocouples
          • Single or dual sensor
          • Compatible with head mount transmitters
          • Simple apparatus for Ex ia applications

        Data Sheet
