HART modem
Universal USB & Bluetooth HART Modem

Aplisens HART/USB/Bluetooth Converter is a universally compatible HART modem used to connect HART protocol instruments to PC's and mobile devices for monitoring or calibration. The modem is universally compatible with many common software interfaces including RAPORT2, Pactware and Fieldcare.

Using the Bluetooth connection, the Aplisens HART modem can also be paired to tablets and mobile phones.


HART ModemPart no.: WKHART/HB-I001
USB & Bluetooth HART Modem for PC and Mobile devices
Aplisens
(Available Ex-stock-Sydney)

This easy to use and universally compatible USB & Bluetooth HART modem provides a way to programming and monitoring HART protocol instruments anywhere over the communication loop. Connection can be made with and manufacture and instrument type that uses the hart protocol via the USB port or wireless bluetooth.

            • Universal connectivity for any manufacturer and device type
            • USB connection to PC, Laptop and Mobile devices (Android, Apple and windows)
            • Bluetooth connectivity for PC, Mac, Laptop and Mobile devices (Android, Apple and windows)
            • USB rechargeable battery.
            • Programmable auto off when left inactive.
            • Kit comes complete with USB/bluetooth dongle for devices not equipped with bluetooth.
            • Compatible with windows OS from XP to Windows 10.
            • 3 Year warranty

          Technical documentation

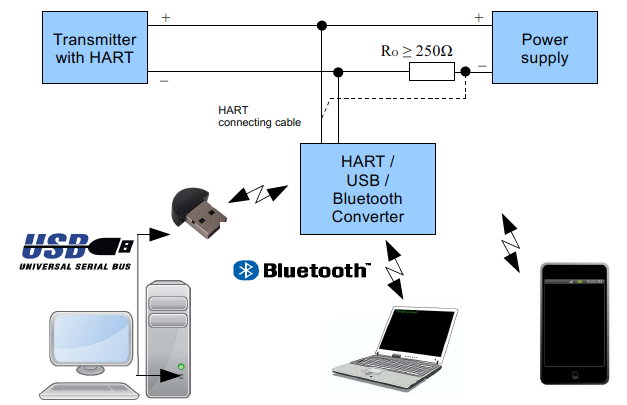

          USB/bluetooth Hart modem arrangement



























Raport 2 - HART and Modbus PC software
Aplisens

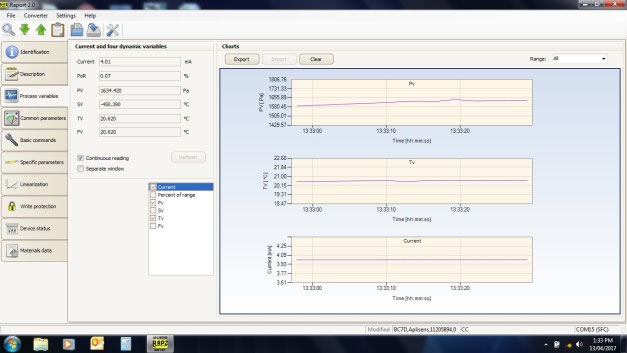

Configure, monitor and record your HART and MODBUS instruments with Aplisens' advanced HART communication software. Connection is streamlined via a HART modem or other compatible decie to provide access and easy navigation to adjust, view and record live information of process variables over the HART loop or a Modbus connection.

Aplisens Mobile Configurator - Android Application for mobile
Aplisens

Use your Android based devices to communicate and transfer data with Aplisens transmitters.

          • Supports wireless Bluetooth connection

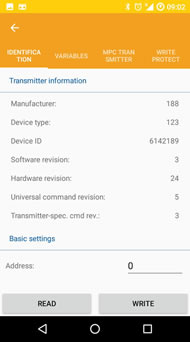

          • Read basic device information
          • Configure device's Tag, Descriptor, Message, Address, etc.

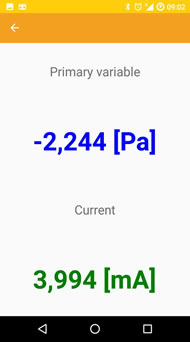

          • Monitor process variables

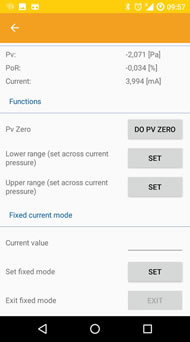

          • Configure range and units
          • Set/Unset write protection
          • Configure specific features of pressure transmitters (LCD, Alarms, transfer function, user variable)
          • supported transmitters : APC-2000, APR-2000, APR-2200, PCE-28.Smart, PRE-28.Smart, PG-28.Smart










Hand held HART Communicator
Aplisens

KAP-03 HART Field communicator is a portable and battery powered device specifically designed for communicating with Aplisens SMART transmitters.

          • Calibrate
          • Spot check
          • Zero and span
