Manifold, Block and Bleed, and Instrument Valves
Stainless steel valves for isolation, sampling, maintenance, calibration or other purposes.

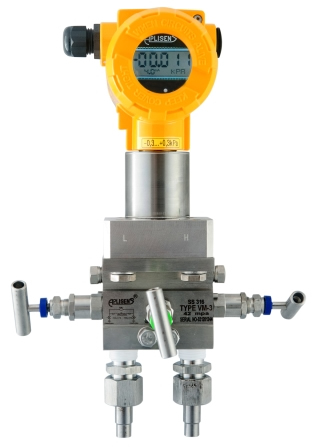

Aplisens's range of manifold valves, and needle valves are tailored to accommodate the varying process conditions and requirements pressure and differential pressure instruments will experience in industrial, marine, oil & gas and other process environments. These manifold valves are ideal for connection to SMARTt and industrial grade pressure and differential pressure transmitters, gauges and switches.
Each valve is manufactured from 316SS as standard and prepared with your choice of either Teflon or graphite packing. Other options include cleaning for oxygen, custom and welded fittings, mounting brackets, special materials and accessories.
Valves are available for pressures up to 45 MPa (6500 psi), temperatures of 648 deg C and compliance with NACE MR-01-75.

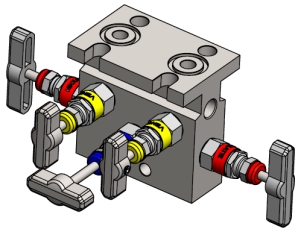

VM-5
5 Valve Manifold
- DIN EN 61518 / IEC 61518 flanged manifold connection
- 1/2" NPT female process side connection
- 316SS body with Teflon packing
- Up to 6000 psi and 232 deg C service
- Optional NACE compliance
- Valves to isolate, drain and balance
VM-5/G
High temperature 5 valve manifold with Grafoil packing
- DIN EN 61518 / IEC 61518 flanged manifold connection
- 1/2" NPT female process side connection
- 316SS body with Teflon packing
- Up to 6000 psi and 648 deg C service
- Optional NACE compliance
- Valves to isolate, drain and balance

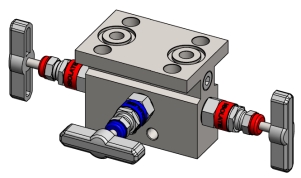

VM-3
3 Valve Manifold
- DIN EN 61518 / IEC 61518 flanged manifold connection
- 1/2" NPT female process side connection
- 316SS body with Teflon packing
- Up to 6000 psi and 232 deg C service
- Optional Grafoil packing for up to 648 deg C
- Optional NACE compliance
- Valves to isolate and balance with separate drain plugs

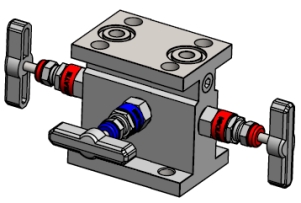

VM-3/H
3 Valve Manifold with Double Flange Connection
- DIN EN 61518 / IEC 61518 flanged manifold inlet/outlet connections
- 316SS body with Teflon packing
- Up to 6000 psi and 232 deg C service
- Optional Grafoil packing for up to 648 deg C
- Optional NACE compliance
- Valves to isolate and balance with separate drain plugs
VM-2-RM/1/2"NPT
Block and Bleed valve (BB) with NPT connections
- 1/2" NPT female instrument side connection
- 1/2" NPT male process side connection
- 1/4" NPT female vent/drain
- 316SS body with Teflon packing
- Up to 6000 psi and 232 deg C service
- Optional Grafoil packing for up to 648 deg C
- Optional NACE compliance
- Valves to isolate from process and drain

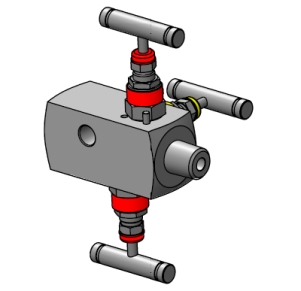

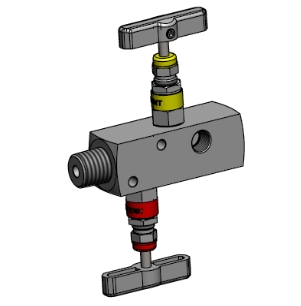

VM-2-RM/1/2"NPT/DOUBLE
Double Block and Bleed valve (DBB) with NPT connections
- 1/2" NPT female instrument side connection
- 1/2" NPT male process side connection
- 1/4" NPT female vent/drain
- 316SS body with Teflon packing
- Up to 6000 psi and 232 deg C service
- Optional Grafoil packing for up to 648 deg C
- Optional NACE compliance
- Valves to isolate process side, instrument side and drain
VM-2-RM/G
Block and Bleed valve (BB) with G (BSPP) connections
- G1/2" (BSPP) female instrument side connection
- G1/2" (BSPP) male process side connection
- 1/4" NPT female vent/drain
- 316SS body with Teflon packing
- Up to 6000 psi and 232 deg C service
- Optional Grafoil packing for up to 648 deg C
- Optional NACE compliance
- Valves to isolate from process and drain
VM-2-RM/M
Block and Bleed valve (BB) with Metric connections
- M20x1.5mm female instrument side connection
- M20x1.5mm male process side connection
- 1/4" NPT female vent/drain
- 316SS body with Teflon packing
- Up to 6000 psi and 232 deg C service
- Optional Grafoil packing for up to 648 deg C
- Optional NACE compliance
- Valves to isolate from process and drain

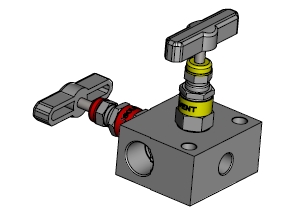

VM-2-R/R
Block and Bleed valve (BB) with NPT connections
- 1/2" NPT female instrument side connection
- 1/2" NPT male process side connection
- 1/4" NPT female vent/drain
- 316SS body with Teflon packing
- Up to 6000 psi and 232 deg C service
- Optional Grafoil packing for up to 648 deg C
- Optional NACE compliance
- Valves to isolate from process and drain
VM-1/G1/2"
Isolation Valve with drain and G (BSPP) connections
- G1/2" (BSPP) female instrument side connection
- G1/2" (BSPP) male process side connection
- Hex head drain plug
- 316SS body with Teflon packing
- Up to 6000 psi and 232 deg C service
- Optional NACE compliance
- Valve to isolate from process and plug drain

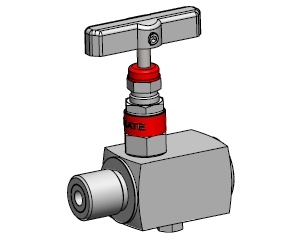

VM-1/M
Isolation Valve with drain and Metric connections
- M20x1.5mm female instrument side connection
- M20x1.5mm male process side connection
- Hex head drain plug
- 316SS body with Teflon packing
- Up to 6000 psi and 232 deg C service
- Optional NACE compliance
- Valve to isolate from process and plug drain

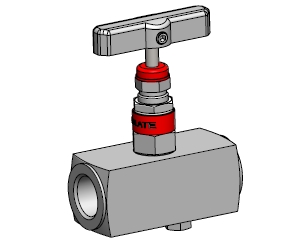

VM-1/G1/2"/GR
Isolation Valve with drain and G (BSPP) connections
- G1/2" (BSPP) female instrument side connection
- G1/2" (BSPP) female process side connection
- Hex head drain plug
- 316SS body with Teflon packing
- Up to 6000 psi and 232 deg C service
- Optional NACE compliance
- Valve to isolate from process and plug drain
