Proximity Probe Mounting Hardware

5497PM - Reverse Mount Probe Holder

The Probe Mounting System works with reverse mount 5mm or 8mm proximity probes. The system mounts on the machine surface for easy installation.

Data sheet







5497DPTH - Dual Reverse Mount Probe Holder for Thrust Measurements

The Metrix adjustable 5497DTPH-CCC-D (Dual Thrust Probe Holder), comes with two 5497PM Probe Holders within an aluminium housing.

Data sheet

5498JP - Conduit Body with Low Pressure Feed Through

The Metrix adjustable 5497DTPH-CCC-D (Dual Thrust Probe Holder), comes with two 5497PM Probe Holders within an aluminium housing.

Data sheet

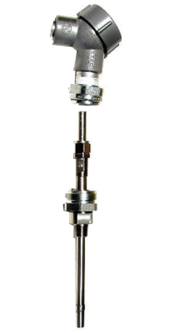

5499 - Heavy Duty Reverse Mount Housing

Model 5499 ruggedized housing provides physical protection for probe to 1000 PSIG (6.89 MPa). It facilitates faster and more accurate probe gap setup and maintenance with separate coarse adjustment and vernier fine adjustment mechanisms.

Disassembly of the integral conduit union allows adjustment access.

Data sheet

7646 - Probe Mounting Brackets

Slotted bracket clamps probe securely in tapped hole. No jam nut required. Material: anodized aluminum or phenolic.



9059 - Threaded Probe Holder

Threaded Hole Probe Holder facilitates low cost mounting through 1/2” and 3/4" NPT tapped holes. Standard jam nut is required to provide the locking mechanism. Material: Stainless Steel. The jam nut is not included; however, it is usually included with the proximity probe..



5494LP - Low Pressure Feed Through

Metrix Low Pressure cable seals prevent oil wicking with proximity probe sensors in rotating equipment. The seals include a split grommet that provides a tight seal and also allows adjustment of the cable position.

Data sheet

5494 - Feed Through

Metrix Model 5494-01 Single Feed Through Extension Cables or Model 5494-02 Dual Feed Through Extension Cables for 10000 and MX Series Probes. Seals cable to 150 PSI (1035 kPa).

Data sheet

9059 - Threaded Probe Holder

Threaded Hole Probe Holder facilitates low cost mounting through 1/2” and 3/4" NPT tapped holes. Standard jam nut is required to provide the locking mechanism. Material: Stainless Steel. The jam nut is not included; however, it is usually included with the proximity probe..
