Vent Panels (Explosion Vent Panels)

Our explosion vent panels provide instantaneous overpressure protection for nearly any type of pressurized dry-bulk handling and storage equipment.

Vent panels are designed to allow a full and immediate opening to minimize structural or mechanical damage by expanded gases from the combustion of dust, gases or mists inside equipment, rooms, buildings or other enclosures.

The VP series

The VP series vent panel is a flat, scored and fluoropolymer-coated aluminum panel. This panel is best suited for operating conditions of positive pressure or vacuum pulsations. It is recommended for a maximum 50% operating-to-burst pressure ratio, positive or negative.

The CP series

The CP series vent panel is a flat, composite-style panel constructed of 316 SS and fluoropolymer. This panel is ideal for cyclic operating conditions, going from positive to negative or negative to positive pressures. A 50% maximum operating-to-burst pressure ratio is recommended.

The SFC & CFC series

The SFC solid metal and CFC composite (metal/fluoropolymer) vent panels are pre-bulged, circular designs. These panels are suitable for higher operating conditions of up to 70% of the burst rating positive pressure and negative pressure of up to 14.7 psig (1.02 barg) full vacuum.

CFR / CFS

The SFR and CFS composite (metal/fluoropolymer) vent panels are pre-bulged, square and rectangular designs. These panels are suitable for higher operating conditions of up to 80% of the minimum tagged rating pressure and negative pressure up to 1.5 psig (0.1 barg) full vacuum.

What are the benefits?

  • Full, instantaneous opening
  • Full opening under dynamic or static pressure conditions
  • Designs interchangeable with existing panel applications
  • Available with Burst Disc Indicator (BDI) alarm strips
  • Designs available for non-fragmentation

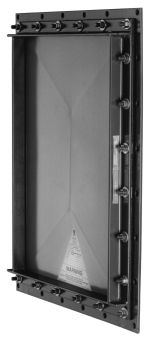

Vent Panel / Explosion PanelVP
Flat Aluminum Vent Panel

The VP series vent panel is a flat, scored aluminum panel with epoxy coating applied to the process and vent
sides. It is available in square (VPS), rectangular (VPR) or circular (VPC) configuration. Burst pressures range
from a minimum of 1.0 psig (0,07 barg) to a maximum of 5.0 psig (0,35 barg).

  • Standard sizes from 12" x 12" up to 44" x 69"
  • Custom sizes on request
  • Burst pressure between 0.07 and 0.35 bar
  • Options for full vacuum and wind load protection
  • Temperatures up to 260 Deg C

VP Series Vent Panel Data Sheet

Vent Panel / Explosion PanelCP
Composite Flat Vent Panel

The CP series vent panel is a flat, composite panel usually constructed of a 316SS top section, TFE seal
and 316SS support section. The composite vent panel is available in rectangular (CPR), square (CPS), or
circular (CPC) configuration. Burst pressures range from a minimum of 1.5 psig (0,10 barg) to a maximum
of 10 psig (0,69 barg).

  • Standard sizes from 10" up to 44"
  • Custom sizes on request
  • Burst pressure between 0.1 and 0.69 bar
  • Options for full vacuum and wind load protection
  • Temperatures up to 260 Deg C

CP Series Vent Panel Data Sheet

Vent Panel / Explosion PanelSFC
Solid Formed Circular Vent Panel

The SFC vent panels are prebulged, circular vent panels utilizing a solid metal construction. The SFC vent
panel is available in sizes 10" through 36" (25 cm through 91 cm) diameter and available in burst pressures
ranging from 2.0 psig (0,14 barg) to 10 psig (0,69 barg), depending on the type vent panel.

  • Standard sizes from 10" up to 36"
  • Custom sizes on request
  • Burst pressure between 0.17 and 0.69 bar
  • Options for full vacuum and wind load protection
  • Temperatures up to 260 Deg C

SFC Series Vent Panel Data Sheet

(back to top)

Vent Panel / Explosion PanelCFC
Composite Formed Circular Vent Panel

The CFC vent panels are prebulged, circular vent panels utilizing a composite metal/fluoropolymer
construction. The SFC vent panel is available in sizes 10" through 30" (25 cm through 76 cm) diameter
and available in burst pressures ranging from 2.0 psig (0,14 barg) to 10 psig (0,69 barg), depending on
the type vent panel.

  • Standard sizes from 10" up to 30"
  • Custom sizes on request
  • Burst pressure between 0.14 and 0.69 bar
  • Options for full vacuum and wind load protection
  • Temperatures up to 260 Deg C

SFC Series Vent Panel Data Sheet

(back to top)

CFR / CFS
Composite Formed Rectangular and Square Vent Panel

The Composite Formed RECTANGULAR (CFR) and Composite Formed SQUARE (CFS) Vent Panels
are designed to provide instantaneous overpressure protection for dry, bulk handling and storage
equipment, such as dust collectors, air scrubbers, sieves, elevators, driers, silos, spreaders and screens.

The CFR and CFS Vent Panels are designed to allow a full and immediate opening to minimize
structural or mechanical damage that may be caused by expanding gases. These gas expansions
can result from the deflagration of dust, gases or mists in equipment, rooms, buildings or other enclosures.

  • Standard sizes from: 18" x 35" up to 26" x 44"
  • Custom sizes on request
  • Burst pressure between 0.07 and 0.69 bar
  • Options for vacuum and wind load protection
  • Temperatures up to 121 Deg C

CFR & CFS Vent Panel Data Sheet
