RF Admittance Level Switches

Drexelbrook is the industry leader in RF Admittance with the largest range of electronics, over 250 different sensing elements and patend Cote-Shield™ circuitry to ignor the effects of coatings. Drexelbrook's range of RF level switches are suitable for just about any level, blocked chute, interface or run dry application.

Aside from RF Admittance Level switches. We also offer a comprehensive range of ultrasonic level switches, float level switches, vibrating fork level switches, hydrostatic level switches, and multipoint level switches.

Applications Features

Bitumen
Cement
Chemical
Dairy
Flyash
Food and Beverage

Mining & Minerals
Oil/Gas
Paper & Pulp
Sugar
Water & Wastewater

Immune to coatings
Maintence free
No moving parts
Not effected by changes in temperature, pressure, agitation, vibration
Heavy duty

Level / Switches / RF

break



Z-Tron IV
RF Admittance level switch for general, high temp and non hazardous applications

- Drexelbrook's Cote-Shield™ circuitry ignores coatings
- No moving parts for maintenance free operation
- High temperature and pressure sensors
- Economical and flexible
- DPDT relay output
- Remote, flyash, blocked chute and other configurations available

Applications:
- Liquid
- Slurry
- Granular
- Interface

Z-Tron IV Data Sheet



break


Z-Tron III

RF Admittance level switch for general applications

- Drexelbrook's Cote-Shield™ circuitry ignores coatings
- No moving parts for maintenance free operation
- Temperatures to 121ºC at 1379 kPa
- Economical, general purpose switch
- DPDT relay output



Applications:
- Liquid
- Slurry
- Granular
- Interface

Z-Tron III Data Sheet

Overview & Calibration for granular product

break

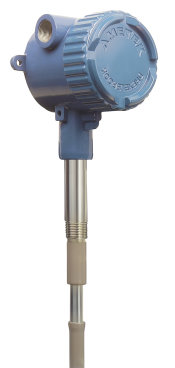

ThePoint (Line Powered)

RF Admittance level switch with IECEx approval, auto calibration and user defined modes

- Drexelbrook's Cote-Shield™ circuitry ignores coatings
- No moving parts for maintenance free operation
- Applications from cryogenic to 815 ºC, vacuum to 68,947 kPa
- DPDT relay output
- Remote or integral configurations

Applications:

- Liquid
- Slurry
- Granular
- Interface

The Point (Line Powered) Data Sheet

break


ThePoint (Two-Wire)
RF Admittance level switch with ANZEx approval, auto calibration and user defined modes

- Drexelbrook's Cote-Shield™ circuitry ignores coatings
- No moving parts for maintenance free operation
- Applications from cryogenic to 815ºC, vacuum to 68,947 kPa
- Two wire output
- Remote or integral configurations

Applications:
- Liquid
- Slurry
- Granular
- Interface

The Point (Two Wire) Data Sheet

(back to top)

break

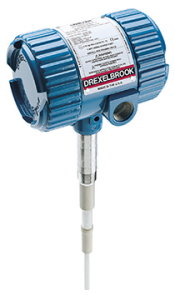

IntelliPoint RF (Line Powered)
RF Admittance level switch with auto Verify™ and Certify™ dignostics

- AutoVerify™ and Certify™ test features for critical applications
- Drexelbrook's Cote-Shield™ circuitry ignores coatings
- No moving parts for maintenance free operation
- Applications from cryogenic to 815 ºC, vacuum to 68,947 kPa
- DPDT relay output
- Remote or integral configurations

Applications:
- Liquid
- Slurry
- Granular
- Interface

Intellipoint RF (Line powered) Data Sheet

(back to top)

break


IntelliPoint RF (Two-wire)
RF Admittance level switch with auto Verify™ and Certify™

- AutoVerify™ and Certify™ test features for critical applications
- Drexelbrook's Cote-Shield™ circuitry ignores coatings
- No moving parts for maintenance free operation
- Applications from cryogenic to 815 ºC, vacuum to 68,947 kPa
- Two wire output
- Remote or integral configurations

Applications:
- Liquid ( including floating roof and internal pan petroleum tanks)
- Slurry
- Granular
- Interface

Intellipoint RF (Two Wire) Data Sheet

(back to top)

break

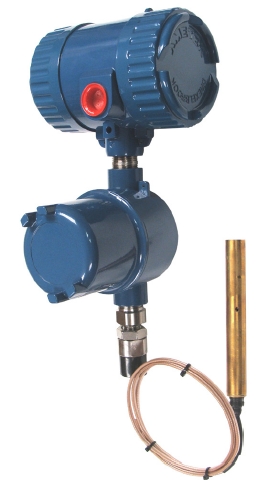

Safety IntelliPoint for foating roof and internal pan tanks
- SIL 1 & SIL 2
RF Admittance level switch with auto Verify™ , Certify
and SIL

- Specifically desinged for floating roof tanks. Will alarm on fluid and contact with roof or internal floating pan.
- SIL 1 & SIL 2 systems
- AutoVerify™ and Certify™ test features for critical applications
- Drexelbrook's Cote-Shield™ circuitry ignores coatings
- No moving parts for maintenance free operation
- Two wire output
- Field adjustable insertion length


Applications:
- Diesel, petroluem, jet fuels and hydrocarbon tanks
- Floating roof storage tanks
- Internal floating pan tanks

Floating Roof Switch Data Sheet

(back to top)


break



Plugged Chute Detector

Flush mounted level switch, ideal for blocked chutes, heavy rocks & ores, wood, pulp, salts and fines

- Drexelbrook's Cote-Shield™ circuitry ignores coatings
- Curved and flat sensors are available
- Extra Heavy duty sensors available
- Universal power supply automatically detects & adjusts to input supply
- DPDT relay
- Less maintenance than other technologies;
- No moving parts to hang up or wear out

Application:

- Solids


Plugged Chute Detector Data Sheet

(back to top)

break


Across Screen, Blocked Chute Detection System.

The Drexelbrook across screen system was specially designed with help from leading CHPPs for reliable detection of blockages on vibrating screens and chutes. Unlike competative products, the patend Cote-Shield™ circuitry enables the device to run maintenance free in the presence of fines buildup.

- Drexelbrook's Cote-Shield™ circuitry ignores coatings
- Detects blockage and unwanted buildup across screens
- Potentially infinte screen sizes.
- Can be modified in the field
- No moving parts

Across Screen Data Sheet

(back to top)

break


Multipoint II
Multipoint level switch with upto 4 independant setpoints and no moving parts

- Drexelbrook's Cote-Shield™ circuitry ignores coatings
- No moving parts for maintenance free operation
- 3 DPDT relays

Applications:

- Liquid
- Surry

Multipoint II Data Sheet

(back to top)

break


ClearLine, In-Line Fluid Detector

Restriction free detection of fluid in pipelines. Perfect for run dry, empty or discharge alarm

- Drexelbrook's Cote-Shield™ circuitry ignores coatings
- Flush design does not impede flow.
- Mounts directly in fluid line
- Run dry, fluid flow and empty vessel protection
- DPDT relay

Application:

- Liquids
- Slurries
- Interfaces

ClearLine Data Sheet

(back to top)

break


Dumpstar, retractable level switch.
Retractable level switch
. Removable without loss of product.

- Retractable sensor will fits through a standard 7/8” block valve
- Drexelbrook's Cote Shield ™ electronics ensure repeatable level indication
- No-moving-parts design reduces repair and downtime

Dumpstar Data Sheet

(back to top)
